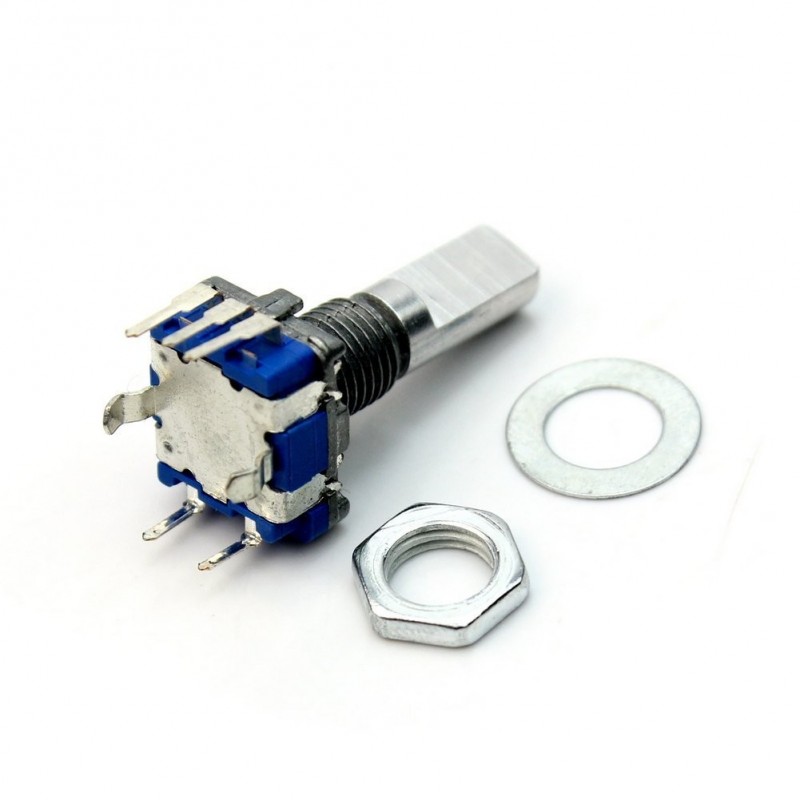

4x 12MM ROTARY ENCODER PUSH BUTTON SWITCH

Rotary Encoder Switch with build in Push button, ideal for cockpit builders, it can be used to build an EFIS, MCP, overhead and many more other panel.

Specifications:

Rotary Shaft Length: Approx. 12mm

Shaft Full Length: Approx. 20mm

Shaft Diameter: Approx. 6mm

Size (L x W): Approx. 15 x 11mm

Position: 20

Pulse: 20

Output: 2-bit gray code

Closed Circuit Resistance: 3 ohms maximums

Max. Rating: 10 mA at 5 VDC

Operating Temperature Range: -30 to 70 degrees celsius

Storage Temperature Range: -40 to 85 degrees celsius

Rotational Life: 30000 cycles minimum

Switch Life: 20000 cycles minimum

Package Includes:

4 x encoder switch

4 x nut

4 x gasket
